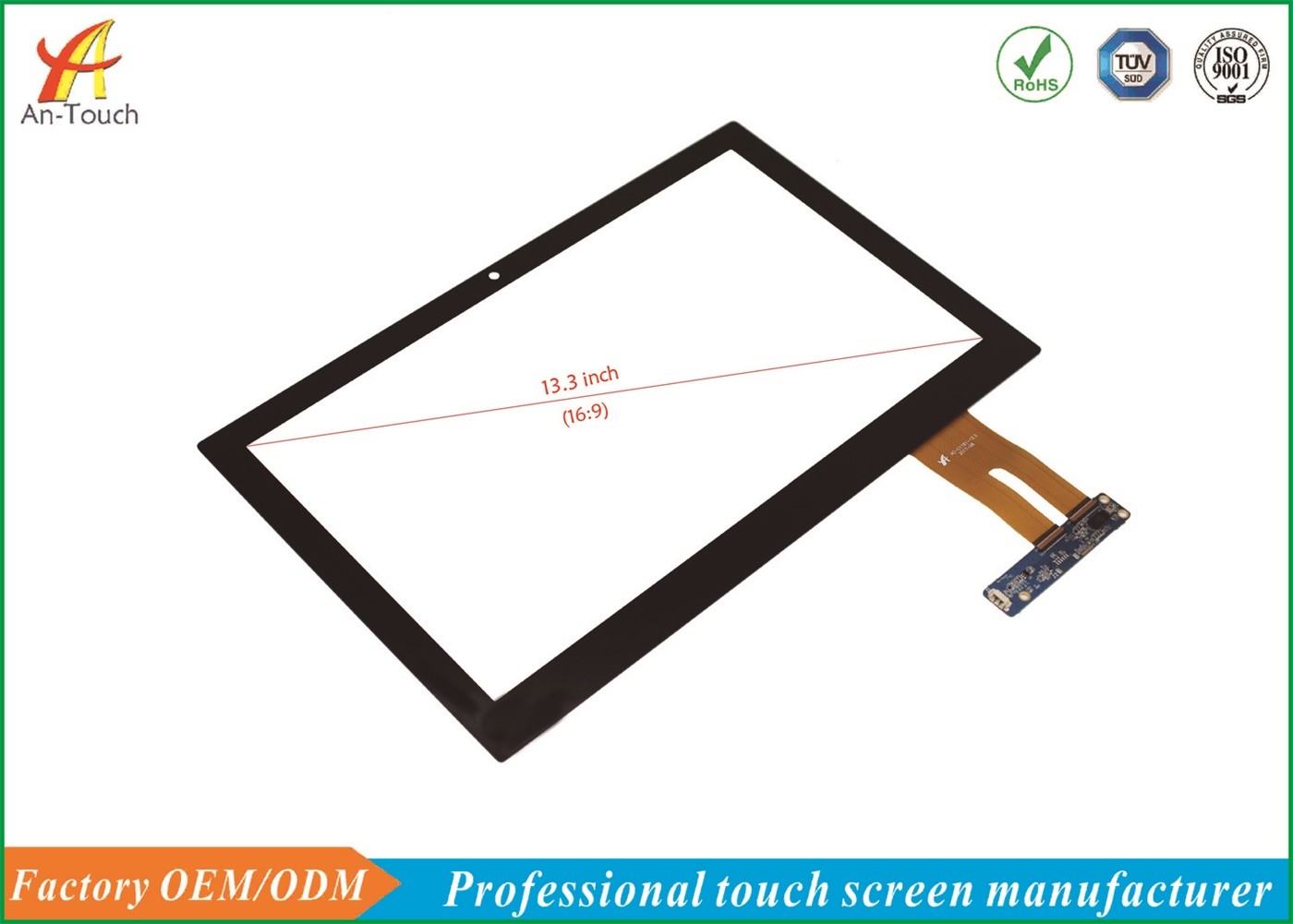

New Design 13.3 inch 16:9 Industrial Touch Panel With AR / AF / AG Glass
Basic Specification:
| Screen size | 13.3 inch |
| Structures | Cover Glass+ITO Glass |
| Ratio | 16:9 |
| Surface Hardness | >6H |
| Outline Dimension | 324.57*202.97mm |
| Module View Area | 291.76*163.24mm |
| Active Area | 307.41*181.04mm |
| Cover Lens | 1.1mm |
| Surface Treatment | AG/AF/AR |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Supply Voltage | 3.3V~5V |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| System Driver | No need(USB plug and play) |
| Touch Points | 1-10 |
Structure & Operating Principle:
Capacitive touch screen is a piece of 2 layer of compound glass with double side transparent conductive
coating that conducts a continuous electrical current across the sensor.
There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.
The human body is also an electrical device which has stored electrons and therefore also exhibits
capacitance.
When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a
voltage drop.
The current flow from each corner is proportional to the distance to the touch point. During a touch
,capacitance forms between the finger and the sensor grid. The touch location is calculated from the
changing electrical characteristics of the sensor grid.
Application:
¤ Point-of-information kiosks.
¤ Vending and ticket sales.
¤ Electronic catalogs.
¤ Gaming, lottery, and amusement.
¤ Public pay phones.
¤ Multimedia marketing.
¤ Banking/financial transactions.
¤ Industrial control rooms.
¤ Computer-based training.
Why choose us?
► Our factory is a legal,responsible,capable,experienced factory.
► We have the largest laminting mechine which can up to 65inch.
► In stock for fast delivery provide the best after-sales service.
► We can provide the best design solutions according customer requirements.
► All of our products have been inspected strictly before delivery.
FAQ:
- How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples 5~10work-days
- How about mass production lead time ?
------ 15 days after sample confirmed
------Usually we deliver our goods by DHL,UPS, FedEx etc.
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
------ Warranty 1year
Shipment service:
FedEx, DHL, UPS, TNT, Aramex etc.
Delivery Time:
1.Samples in stock: 1~3 working days
2.Customized project: 10~15days for samples
3.Mass production: 10~18days
High Dedinition Product Map
Technical Drawings:
